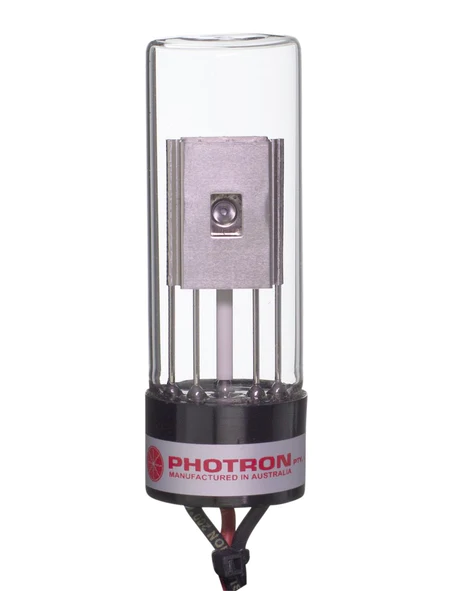

D2 Arc Lamp, 10V, for GBC
Item number 4082-010001
______________________________________________
Late Cut-off: 4PM PST
Description
Deuterium lamp for GBC Scientific instrumentation.
Specs
Filament / Heater Voltage
- Start: 10 VDC
- Operating: 5 - 7 VDC
Filament / Heater Current: 1.5A Max
Discharge / Arc Voltage
- Strike: @25_C >350 VDC
- Operating: 60 - 90 VDC
Discharge / Arc Current: 10 -300mA
Leads
- Black: Filament & Cathode
- Red: Anode
Window material: UV Transmitting Borosilicate
Source aperture: Ø 1mm Diameter
Wavelength range: 185nm - 400nm
Noise: <1 x 10-4 Absorption units
Drift: < 3 x 10-3 Absorption units
This product is intended for laboratory and industrial use only in analytical testing environments and is not for consumer or medical use.
