M10 Automated Evaporation Concentrator
Item number 4350-M10
______________________________________________
Auto-Ship
Keep laboratory supplies well stocked
Late Cut-off
4PM PST
Description

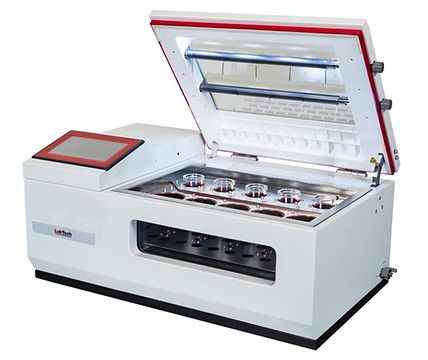

The LabTech M10 is an automatic parallel concentration system with 10 sample positions supporting 50mL and 200mL concentration cups simultaneously. With the M10 it is possible to evaporate to solid state or concentrate into a fixed end-point volume. Preferable to rotary evaporators, the M10 is compact and can be used outside the fume hood due to its integrated vapor exhausting system.
Technical Features:
- Vortex nitrogen purge to achieve the highest concentration efficiency. The location and direction of nitrogen purge can be adjusted according to the concentration cup size and sample volume.
- Operations visible through the backlit front window. Sample cups do not need to be handled to check the residual volume.
- Sealed concentration chamber including a high efficient vapor exhausting system.
- Built-in digital nitrogen gas regulator to control nitrogen flow and evaporation speed.
- Automatic detection of the liquid end-point.
- 10 positions supporting 50 & 200ml concentration cups simultaneously.
- 10 infrared sensors for single cup volume control
- Possibility to place concentration cups in the liquid handler of GPC/SPE directly
- Liquid bath with temperature control range from ambient to 99.9°C
- Low liquid level and pressure alarms
- Touch-screen control interface.
Contact Sales@CPIInternational.com for pricing or to discuss payment options.
Endpoint Detection
• 10-position infrared sensor for automatic endpoint detection
• Each sample cup stops process independently
• Endpoint detection by infrared sensor
Nitrogen Blowdown
• Separate nitrogen blowing control for each channel.
• Auto shut off by channel when process is complete
• No welds used in the nitrogen purge tubes, helps avoid corrosion

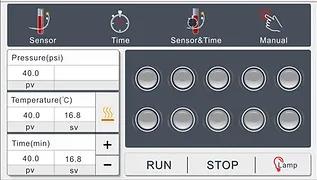

Workstation
• User friendly touchscreen control interface
• Ability to independently turn on/off each channel/nozzle
• Adjust pressure, temperature and time
Specs
- Sample Positions: 10
- Sample Size: accommodates 50mL and 200mL volumes
- Temperature Range: ambient to 99.9°:C
- Temperature Accuracy: +/- 0.1°:C
- Includes:
- Ten (10) 200 mL concentration vials (1 mL end point)
- Ten (10) 50 mL concentration vials (1 mL end point)
- One (1) 200 mL rack; 10 positions
- One (1) 50 mL rack; 10 positions
- One (1) exhaust fume tube (3m)
- One (1) electric power cable
- Ten (10) plastic vapor stoppers for 200 mL holes
- Ten (10) plastic vapor stoppers for 50 mL holes
