SCI120L-Pro 20L Rotary Evaporator including set of glassware vertical, USA plug, 220-240V, 50/60Hz.
Item number 4700-30112124
______________________________________________
Auto-Ship
Keep laboratory supplies well stocked
Late Cut-off
4PM PST
Description
SCI20L-Pro 20L Rotary Evaporator, Vertical Coiled Condenser, 20L Evaporating Flask, 10L Receiving Flask, 220-240V, 50/60Hz:
The SCI20L-Pro is ideal for continuous distillation of many volatile solvents under reduced pressure. It offers an excellent distilling solution in a wide range of applications.
SCI20L-Pro 20L Rotary Evaporator Features:

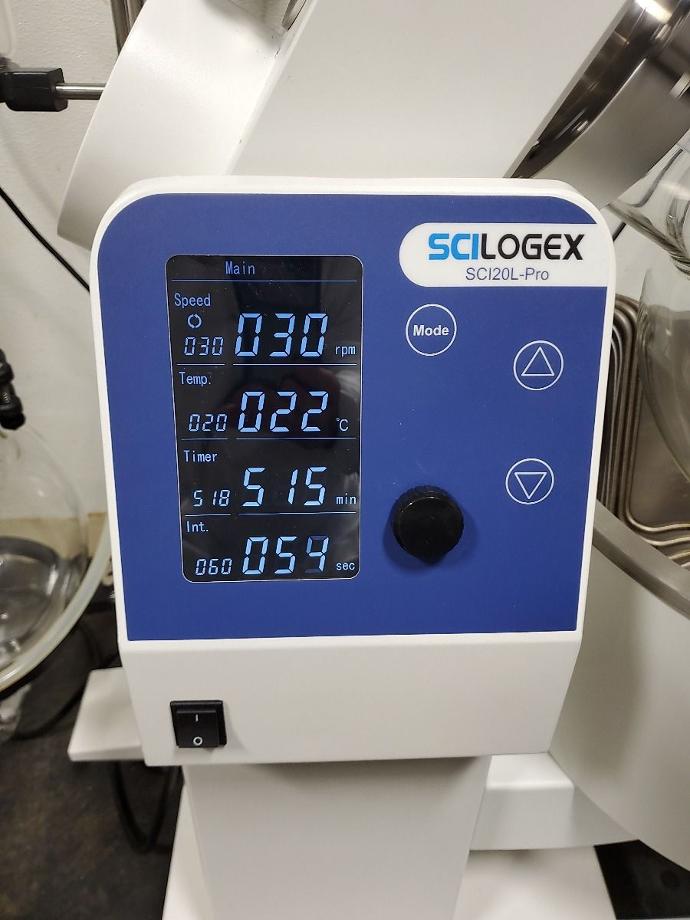

- Large LCD digital display with heating temperature, rotation speed, clockwise, anti-clockwise and timer;
- Simple automatic motorized lift (stroke 180mm), smooth and silent;
- Water/oil heating bath with wide temperature range from room temperature range to max. 180°C;
- Speed range from 10 to 150rpm, and interval operation in clockwise and anti-clockwise directions for drying process;
- Double-layer high-efficiency condensing tube with large condensation area and strong evaporation capacity, ensuring efficient sample recovery;
- Patented PTFE double sealing ring with excellent sealing performance.
- Switching valve for continuous collection without compromising the system vacuum and solvent distillation.
- Large LCD display
- Overheating protection
- Excellent chemical resistance
- 2 YEAR WARRANTY
SCI20L-Pro 20L Rotary Evaporator Specifications:
| Rotation Speed | 10~150 rpm |
| Display | LCD (temperature/speed/clockwise and Anti-clockwise/time) |
| Clockwise and Anti-clockwise | Yes |
| Temperature Range | Room temp. to 180°C (both water and oil) |
| Control Accuracy | Water: ± 1°C Oil: ± 3°C |
| Evaporation capacity | Max. 4.0 L/h (water vapor volume) |
| Stroke Displacement | Automatic 180 mm |
| Ultimate vacuum | Less 2.6 hpa |
| Dimension [DxWxH] | 1160 mm × 600 mm× 1860 mm |
| Temperature control method | Micro processor PID control |
| Safety features | Motor over-current protection, Residual Current Device, lifting overload protection, Boil-dry protection, over-temperature protection |
| Sample flask | Round flask 20 L |
| Receiving flask | Round flask 10 L with drain valve |
| Condenser | Two-section vertical triple serpentine condenser, cooling surface 1.2 m2 |
| Heating bath size | ϕ 450 × 240 mm |
| Takeover caliber | Cooling/suction nozzle outer diameter 16 mm, vacuum pump nozzle outer diameter 16 mm |
Power Supply | 220 V/ 4600 W / 50/60 Hz 380 V/ 6000 W/ 50/60 Hz |
Additional Information
Ship Weight lbs 353/220
Ship Size L inches 40/35
Ship Size W inches 25/28
Ship Size H inches 44/29
