Pulse 150™ Ultrasonic Homogenizer with 6mm horn and soundproof box, 120V

Description

Ideal for cell disruption, DNA shearing and ChIP assays

Programmable with touch screen control and pulsed operation

150W, for volumes 0.1 to 150 ml (requires appropriate horn)

Supplied complete with 6mm horn, temperature probe and soundproof enclosure

The Pulse 150 Ultrasonic Homogenizer uses cavitation and ultrasonic waves to break cells in suspension, shear DNA and prepare samples for ChIP assays. With up to 150 watts of power, the unit processes samples from 0.1 ml to 150 ml (with the appropriate horn).

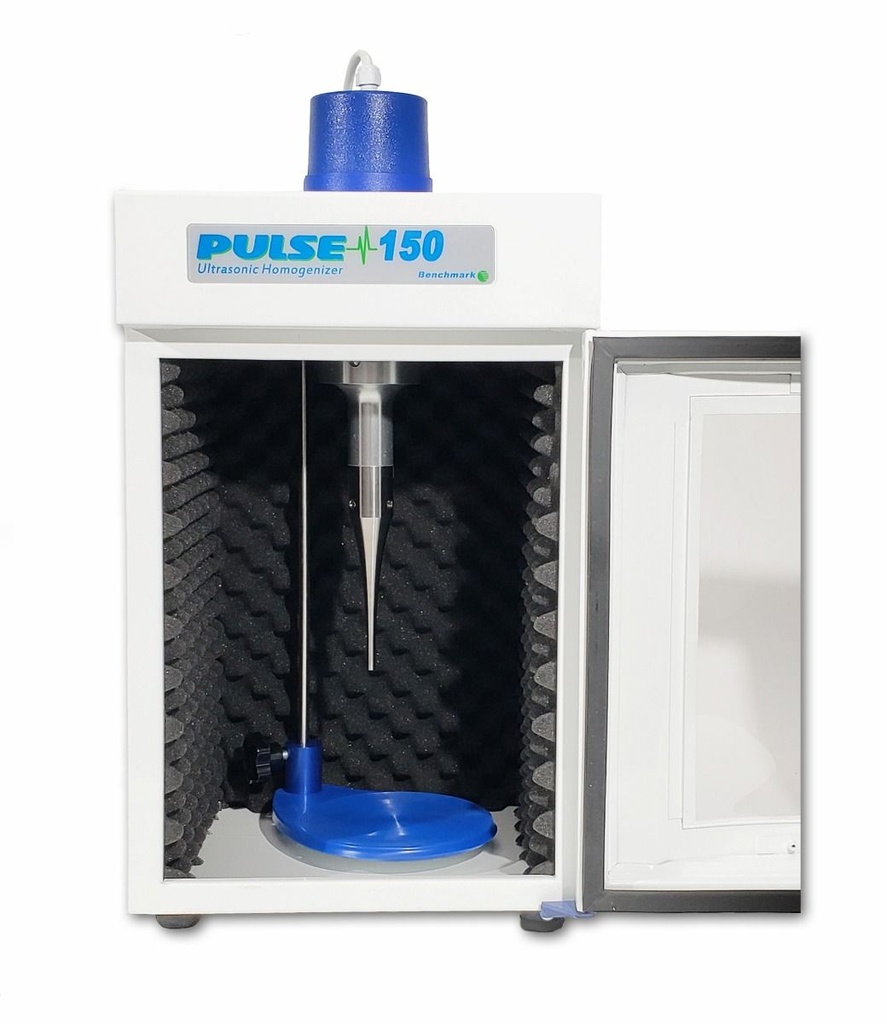

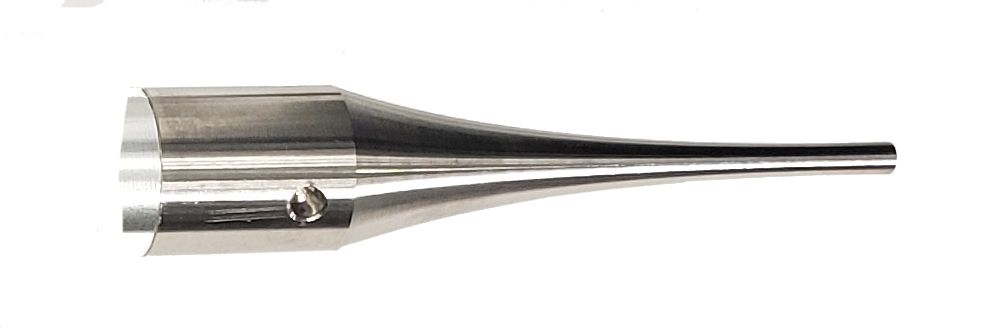

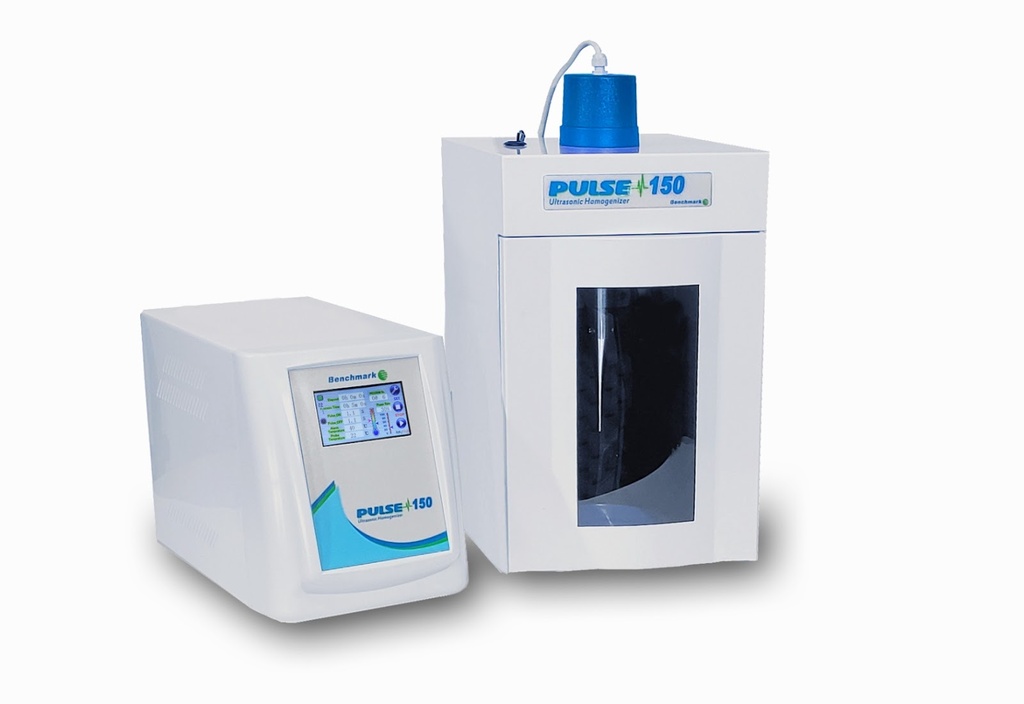

All components needed for homogenization are included with the Pulse 150 – a controller, transducer, temperature probe, 6 mm diameter titanium alloy horn and wrenches to change horns. A soundproof box with sample platform is also supplied as standard. The box reduces the noise generated by the sonicator. The 6mm horn is appropriate for volumes from 10ml to 100ml. Optional horns are available for other volumes.

Operating parameters are set and viewed on the 4.3 inch color touch screen. Pulsed operation is easily programmed as is the power level. Twenty programs can be stored in memory and recalled as needed. Alarms alert the user to over temperature, over/no load and expiration of time.

Specs

Power: 1.5 - 150 W continuously adjustable
Frequency: 20 - 25 KHz
Cycle time (pulse on/off): 0.1 - 99.9 sec
Timer: 1 sec - 99 hours:59m min:59 sec
Duty cycle: 0.1 - 99.9%
Volume*: 0.1 - 150 ml
Program memory: 20 programs
Display/control: 4.3 inch full color touch screen
Controller W x D x H: 12 x 18.5 x 16.9 in.
Controller weight: 35.3 lbs
Soundproof enclosure W x D x H: 13.8 x 13.8 x 21.7 in.
Soundproof enclosure weight: 22 lb
Electrical: 120V or 230V 50-60 Hz
Warranty: 2 years

*Volume dependent upon the installed horn. Supplied with 6mm horn for volumes 10 - 100 ml.
