Micro-Control Valves


Micro-Control Valves

Micro-Control Valves for All Instruments and Applications

  • Pneumatic Control ON/OFF Valves
  • Low Cost Stainless Steel ON/OFF Valves
  • Low Cost Stainless Steel Control Valves
Guaranteed Compatibility with Agilent, Varian, Shimadzu, PerkinElmer, and More.

Extra-Long-Life
Multipliers & Filaments

Manufactured
in the USA

Increase Instrument
Uptime

Industry-Leading
Linearity

Used by OEMs in
Premium Instruments

Late Order
Cutoff Time

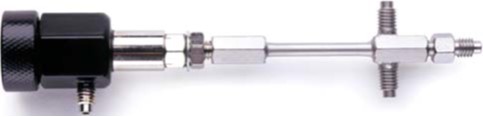

Pneumatic Control ON/OFF Valves

The MOVP and MOVPT valves have a similar design to the MOVT except with these valves, the on/off function is actuated pneumatically. The pneumatic head assembly, which can be actuated remotely with a toggle switch or solenoid valve, is operated from a 50-55 psi air supply.


Pneumatic Control ON/OFF Valves
Configuration / Material Length / Connection Temperature Rating Vacuum Rating Pressure Rating Valve Code Part Number
L Single Outlet, Stainless Steel 50 mm, 1/16" 300 °C Yes 500 psi MOVP 1236091
T Dual Outlet, Stainless Steel 50 mm, 1/16" 300 °C Yes 500 psi MOVPT 1236103
T Dual Outlet, Stainless Steel 100 mm, 1/16" 300 °C Yes 500 psi MOVPT(L) 1236104

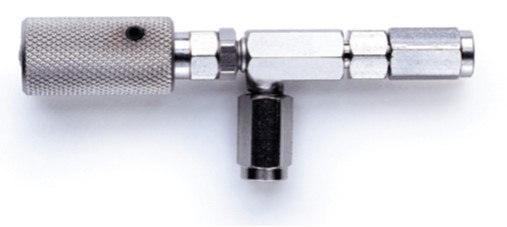

Low Cost Stainless Steel ON/OFF Valve​


The SMOV compact stainless steel on/off valve is ideal for use as an isolation/shut off valve. Suitable for solvent dumping. 1/16" OD flow lines or fused silica lines can be used. Can be used at temperatures from ambient to 100 ºC, ideal isolation/shut off valve.

Low Cost Stainless Steel ON/OFF Valves
Configuration / Material Length / Connection Temperature Rating Vacuum Rating Pressure Rating Valve Code Part Number
Single Outlet, Stainless Steel 1/16" 100 °C No 5500 psi SMOV 1236283

Low Cost Stainless Steel Control Valve​


The BMCV, an inexpensive mini-valve, is ideal for on-line micro control for elevated pressures to 6 atmospheres (90 psi), and temperatures from ambient to 100 °C. This valve is ideally used for septum purge and non-precision fl ow control. The valve accepts 1/16” OD fl ow lines. The BMCV-1 has been the “work-horse” of the SGE injector kits and control modules for many years. Depending on the gas, it can provide smooth flow metering up to 2 liter/min.

Low Cost Stainless Steel Control Valves
Configuration / Material Length / Connection Temperature Rating Vacuum Rating Pressure Rating Flow Rating Valve Code Part Number
Single Outlet, Brass 1/16" 100 °C No 500 psi 0-2000 mL/min BMCV-1 1236282
BMCV-1 BRASS VALVE
Item number 1236282
147.00 147.0 USD
MOVP-1-50 PNEUMATIC VALVE
Item number 1236091
480.00 480.0 USD
MOVPT-1-100 PNEUMATIC VALVE
Item number 1236104
510.00 510.0 USD
MOVPT-1-50 PNEUMATIC VALVE
Item number 1236103
553.00 553.0 USD
SMOV-1 SS ON-OFF VALVE
Item number 1236283
156.00 156.0 USD
