GC Autosampler Syringes for Agilent Technologies

Fixed Needle Syringes
Removable Needle Syringes
Single Gauge Syringes
Dual Gauge Syringes
Gas Tight Syringes
Replacement Needles and Plungers
Compatible with HP7673, 7683, 7693A and 6850AL

Guaranteed Compatibility with Agilent, Varian, Shimadzu, PerkinElmer, and More.

Extra-Long-Life
Multipliers & Filaments

Manufactured
in the USA

Increase Instrument
Uptime

Industry-Leading
Linearity

Used by OEMs in
Premium Instruments

Late Order
Cutoff Time

Syringes with Fixed Needle

Accuracy and Reproducibility	± 1 % (dispensed volume) (± 2 % for 0.5 μL and 1 μL syringes)
Borosilicate Glass Barrel Outer Diameter (OD)	0.5 μL = 6.5 mm, 1 μL = 8 mm (except P/N 000610 which is 6.5 mm) 5 μL to 250 μL = 6.5 mm
Scale Length	0.5 μL = 27.05 mm, 1 μL to 250 μL = 54.1 mm (except P/N 000610 which is 27.05 mm)

Volume	Needle Length (mm)	Needle Gauge	OD (mm)	Tip Style	Repl. Needle P/N	Repl. Plunger P/N	6/pk Syringe P/N	1/pk Syringe P/N
Fixed Needle - Single Gauge

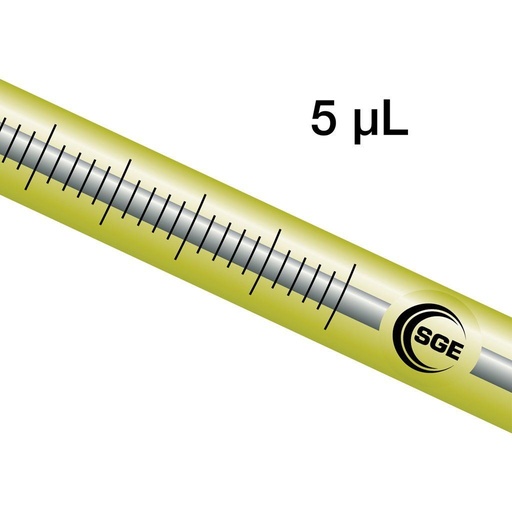

5 μL	42	26	0.47	Cone	-	-	1804	1800
5 μL (M)	42	23	0.63	Cone	-	-	1814	1810

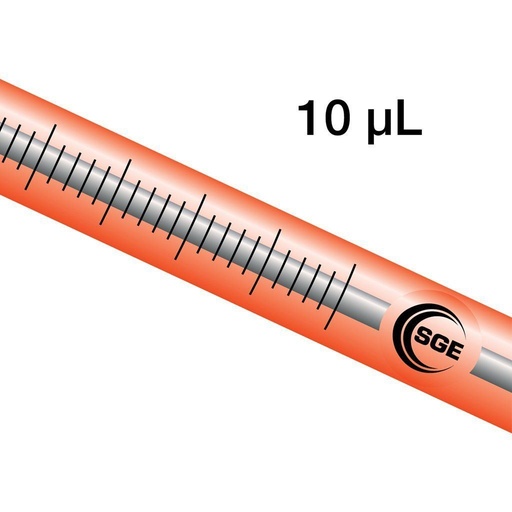

10 μL	42	26	0.47	Cone	-	-	2804	2800
10 μL (M)	42	23	0.63	Cone	-	-	2814	2810
10 μL Gas Tight	42	23	0.63	Cone	-	31808	-	2812
Fixed Needle - Dual Gauge
5 μL	42	23-26	0.63-0.47	Cone	-	-	1822	1821
10 μL	42	23-26	0.63-0.47	Cone	-	-	2822	2821
10 μL Gas Tight	42	23-26	0.63-0.47	Cone	-	31809	2827	2826
25 μL Gas Tight	42	23-26	0.63-0.47	Cone	-	31818	-	3668
50 μL Gas Tight	42	23-26	0.63-0.47	Cone	-	31142	-	4668

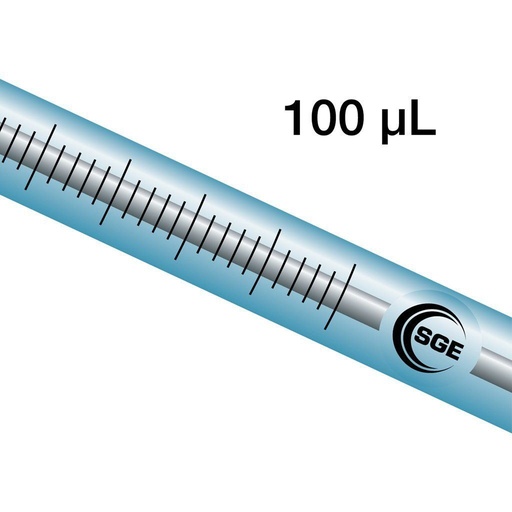

100 μL Gas Tight	42	23-26	0.63-0.47	Cone	-	31823	-	5668

Syringes with Removable Needle

Volume	Needle Length (mm)	Needle Gauge	OD (mm)	Tip Style	Repl. Needle P/N	Repl. Plunger P/N	6/pk Syringe P/N	1/pk Syringe P/N
Single Gauge

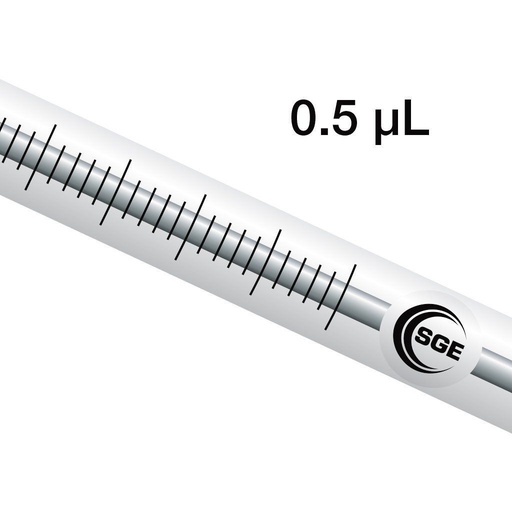

0.5 μL	42	26	0.47	Cone	33708	-	-	400
0.5 μL (M)	42	23	0.63	Cone	33715	-	-	410
1 μL	42	23	0.63	Cone	33715	-	-	610
10 μL	42	26	0.47	Cone	37715	-	-	2805
10 μL (M)	42	23	0.63	Cone	37717	-	-	2815
25 μL (M)	42	23	0.63	Cone	38717	-	-	3665
50 μL (M)	42	23	0.63	Cone	38717	-	-	4665
250 μL (M)	42	23	0.63	Cone	38717	-	-	6665
Dual Gauge
0.5 μL	42	23-26	0.63/0.47	Cone	33730	-	-	415
10 μL Gas Tight	42	23-26	0.63/0.47	Cone	37730	31809	-	2829
(M) - suitable for use with the Merlin Microseal Injector
