SilFlow™ GC Splitters

Splitters and Deans Switches Configurations to Suit Your Application

Trajan understands today’s chromatographers need to move from tubing-based flow systems to planar microchannel systems to deliver flexible chromatography solutions. SilFlow is an innovation in design and fabrication resulting in a highly efficient and reliable microfluidic platform that improves your GC connectivity to enable maximum chromatography performance

Guaranteed Compatibility with Agilent, Varian, Shimadzu, PerkinElmer, and More.

Extra-Long-Life
Multipliers & Filaments

Manufactured
in the USA

Increase Instrument
Uptime

Industry-Leading
Linearity

Used by OEMs in
Premium Instruments

Late Order
Cutoff Time

Configuration options for your chromatography solutions

The SilFlow microchannel device (MCD) is available in a number of configurations. Three (3) port GC splitters allowing flow splitting options with three different configurations. Four (4) port GC splitters offering similar configuration flexibility as the 3 port solution. Deans' switch MCD, perfect for multidimensional analyses.

Chemically Inert

Enabled by Trajan’s expertise in surface chemistry, SilFlow features chemically deactivated stainless steel channels avoiding active sites experienced with conventional connections. SilFlow can be incorporated into your system without impacting your chromatography.

Low dead volume connections

Graphite or Graphite/Vespel ferrules cannot be used with the SilFlow MCD as the dimensional stability is not adequate and there is a risk of contaminating the channels. SilTite FingerTite metal ferrules result in a reliable zero dead volume connection, giving you optimized peak shapes.

Superb operational stability

Pressure capability - The SilFlow system can be operated at pressures greater than 25,000 psi (170,000 kPa). Thermal lag - SilFlow tracks oven temperature up to 20°C/min. The design of SilFlow alleviates cold spots and sample condensation. Maximum temperature - No practical temperature limit. Limited only by the temperature rating of the GC column being used, ≤420°C.

Easy to install and leak free

SilFlow kits incorporate SilTite FingerTite fittings that are easy to set up and can be tightened using finger force to achieve a perfect, reliable seal, even for the most sensitive MS systems – no wrenches required!

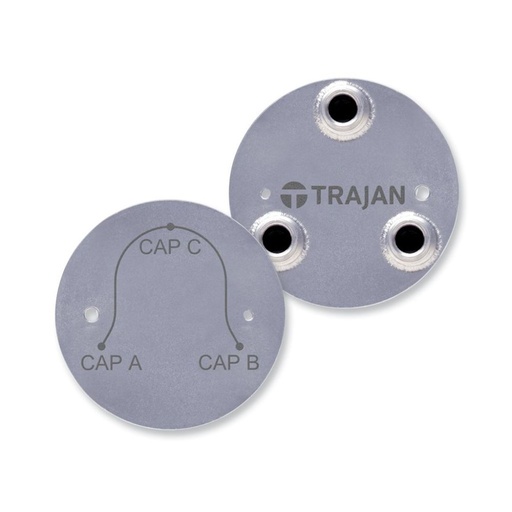

SilFlow GC 3-Port Splitter Ordering Information

Part Number	Part Description and Detail
123722	Port A 0.25/0.32 mm ID, ports B and C 0.25/0.32 mm ID SilFlow GC 3 port splitter kit
123721	Port A 0.53 mm ID, ports B and C 0.25/0.32 mm ID SilFlow GC 3 port splitter kit
123720	Port A 1.1 mm OD, ports B and C 0.25/0.32 mm ID SilFlow GC 3 port splitter kit
123725	Microchannel device only, port A 0.25/0.32 mm ID, ports B and C 0.25/0.32 mm ID SilFlow GC 3 port splitter
123724	Microchannel device only, port A 0.53 mm ID, ports B and C 0.25/0.32 mm ID SilFlow GC 3 port splitter
123723	Microchannel device only, port A 1.1 mm OD, ports B and C 0.25/0.32 mm ID SilFlow GC 3 port splitter

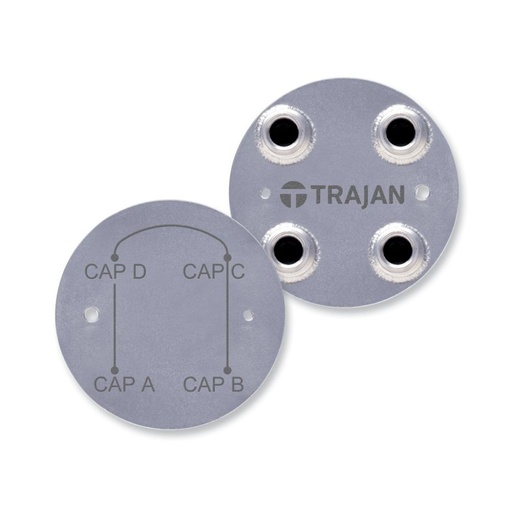

SilFlow GC 4-Port Splitter Ordering Information

Part Number	Part Description and Detail
123732	Port A 0.25/0.32 mm ID, ports B, C and D 0.25/0.32 mm ID SilFlow GC 4 port splitter kit
123731	Port A 0.53 mm ID, ports B, C and D 0.25/0.32 mm ID SilFlow GC 4 port splitter kit
123730	Port A 1.1 mm ID, ports B, C and D 0.25/0.32 mm ID SilFlow GC 4 port splitter kit
123735	Microchannel device only, port A 0.25/0.32 mm ID, ports B, C and D 0.25/0.32 mm ID SilFlow GC 4 port splitter
123734	Microchannel device only, port A 0.53 mm ID, ports B, C and D 0.25/0.32 mm ID SilFlow GC 4 port splitter
123733	Microchannel device only, port A 1.1 mm ID, ports B, C and D 0.25/0.32 mm ID SilFlow GC 4 port splitter

SilFlow GC Deans’ Switch Ordering Information

Part Number	Part Description and Detail
1237031	Deans’ switch kit (includes 1.1 mm OD tubing)
1237261	Microchannel device only Deans’ switch

SilFlow Replacement Parts

Part Number	Part Description and Detail
123704	SilFlow nuts, PK10
123713	SilFlow ferrules 0.35 mm ID, PK10
123706	SilFlow ferrules 0.4 mm ID, PK10
123707	SilFlow ferrules 0.5 mm ID, PK10
123709	SilFlow ferrules 0.7 mm ID, PK10
123705	SilFlow ferrules 1.1 mm ID, PK10

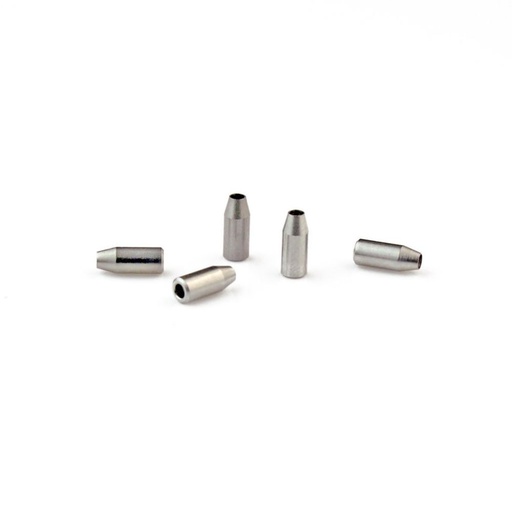

123715	SilFlow blanking ferrules and pins, PK5

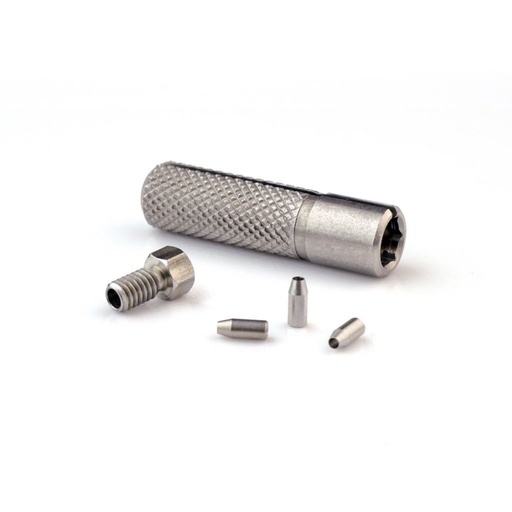

123717	SilTite FingerTite tool
123743	SilFlow ferrules 0.55 mm ID, PK10
123744	SilFlow ferrules 0.75 mm ID, PK10
123742	SilFlow ferrules 0.8 mm ID, PK10
123755	SilFlow stainless steel capillary tubing, 75 cm long, 1.1 mm OD sleeved to 1/16" at one end (not included in kits, must be purchased separately if required)
