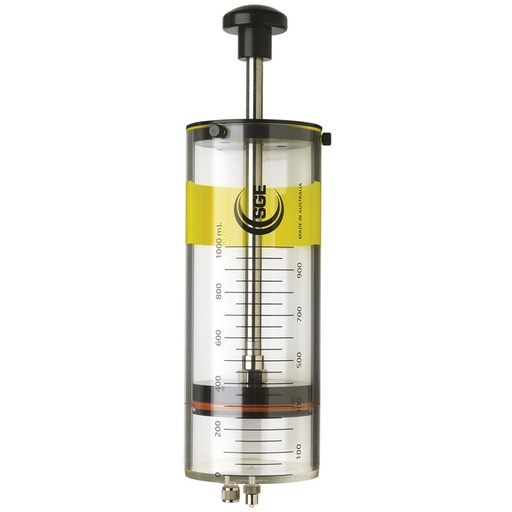

0.5 L to 2 L Jumbo Syringes

Designed for holding and dispensing large volumes of gas
Heavy duty acrylic barrels
Easy access to sample for the addition of standards or removal of subsample via secondary port
Plunger stem is removable for ease of transportation and storage
Ideal for calibration of medical equipment such as respirators and spirometers, and for stack and air sampling.
Compatible with a range of fittings; has a 7/16" UNEF thread and designed to be used with Luer Lock fittings and needles

Accuracy and Reproducibility	± 2 % (dispensed volume)
Acrylic Barrel Outer Diameter (OD)	0.5 L = 70 mm, 1 L = 100 mm and 2 L = 130 mm
Scale Length	0.5 L = 179.2 mm, 1 L = 159.1 mm and 2 L = 179 mm

Volume	Barrel Length (mm)	Barrel OD (mm)	Major Scale Divisions (mm)	Minor Scale Divisions (mm)	Syringe Code	Repl. Plunger O-Ring P/N	1/pk Syringe P/N
0.5 L	245	70	50	25	500MAR-LL-GT	32527	9910
1 L	245	100	100	50	1000MAR-LL-GT	32532	9920
2 L	245	130	200	100	2000MAR-LL-GT	32537	9930
Jumbo Syringe Accessories
Luer Lock Adaptor							31902
Sealing CS Septa (packet of 50)							41822
