0.5 - 5 μL NanoVolume Syringes

6.5 mm and 8.0 mm OD barrels available
Multiple needle lengths and tip styles
inject down to 50 nL with high precision and accuracy
Perfect for NanoVolume capillary chromatography injection
Replacement Needle and Plunger Kits
Syringes Fitted with Repeating Adaptor

Guaranteed Compatibility with Agilent, Varian, Shimadzu, PerkinElmer, and More.

Extra-Long-Life
Multipliers & Filaments

Manufactured
in the USA

Increase Instrument
Uptime

Industry-Leading
Linearity

Used by OEMs in
Premium Instruments

Late Order
Cutoff Time

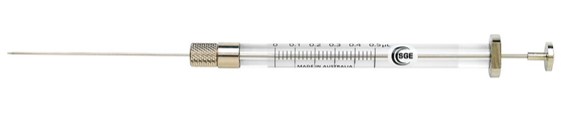

General Purpose Manual Syringes | 0.5 - 5 μL NanoVolume

With the ability to inject down to 50 nL with high precision and accuracy, SGE NanoVolume Syringes are perfect for NanoVolume capillary chromatography injection as well as making accurate standards that require small volumes.

The sample is only drawn into the needle, not the syringe barrel. When the plunger is depressed, the sample is completely dispensed by the NanoVolume plunger that extends to the tip of the needle.

Accuracy and Reproducibility	± 2 % (dispensed volume)
Borosilicate Glass Barrel Outer Diameter (OD)	6.5 mm and 8 mm
Scale Length	0.5 μL (6.5 mm OD barrel) = 27.05 mm, 0.5 μL (8 mm OD barrel) = 63.7 mm, 1 μL = 54.1 mm, 63.7 mm, 5 μL = 48.7 mm

Volume	Needle Length (mm)	Needle Gauge	OD (mm)	ID (mm)	Tip Style	Syringe Code	Replacement Needle and Plunger P/N	1/pk Syringe P/N
6.5 mm Outer Diameter (OD) Barrel

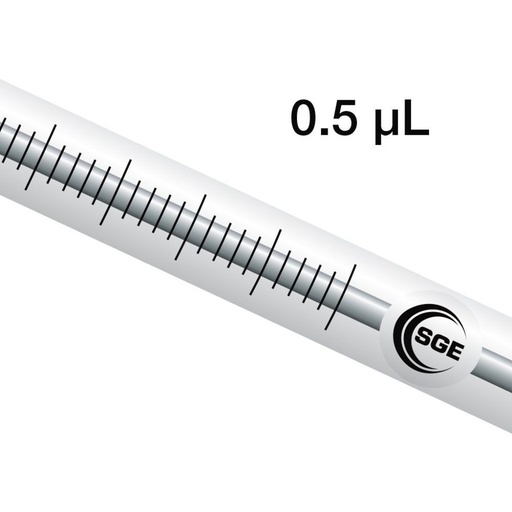

0.5 μL	50	23	0.63	0.155	Cone	0.5BNR-5	33010	300
0.5 μL	50	23	0.63	0.155	Bevel	0.5BNR-5BV	33011	301
0.5 μL	50	26	0.47	0.155	Cone	0.5BNR-5/0.47	33012	303

Volume	Needle Length (mm)	Needle Gauge	OD (mm)	ID (mm)	Tip Style	Syringe Code	Replacement Needle and Plunger P/N	1/pk Syringe P/N
6.5 mm Outer Diameter (OD) Barrel
0.5 μL	50	23	0.63	0.155	Cone	0.5BNR-5	33010	300
0.5 μL	50	23	0.63	0.155	Bevel	0.5BNR-5BV	33011	301
0.5 μL	50	26	0.47	0.155	Cone	0.5BNR-5/0.47	33012	303

Volume	Needle Length (mm)	Needle Gauge	OD (mm)	ID (mm)	Tip Style	Syringe Code	Replacement Needle and Plunger P/N	1/pk Syringe P/N
8.0 mm Outer Diameter (OD) Barrel
0.5 μL	70	23	0.63	0.1	Cone	0.5BR-7	33057	310
0.5 μL	70	23	0.63	0.1	Bevel	0.5BR-7BV	33060	311
1 μL	50	23	0.63	0.155	Cone	1BR-5	34055	500
1 μL	50	23	0.63	0.155	Bevel	1BR-5BV	34056	501
1 μL	70	23	0.63	0.155	Cone	1BR-7	34057	505
1 μL	70	23	0.63	0.155	Bevel	1BR-7BV	34060	506

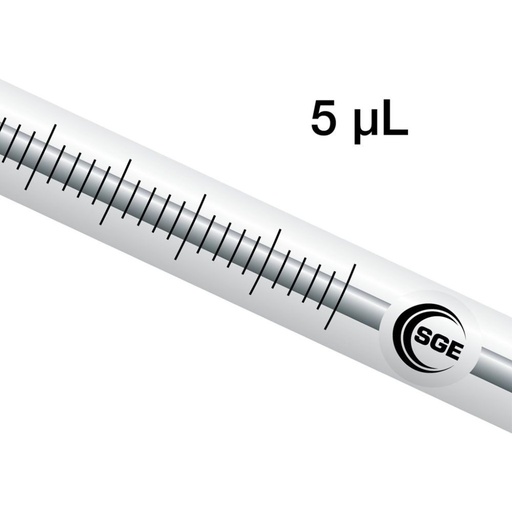

5 μL	50	23	0.63	0.365	Cone	5BR-5	35055	800
5 μL	50	23	0.63	0.365	Bevel	5BR-5BV	35056	801
5 μL	70	23	0.63	0.365	Cone	5BR-7	35057	802
5 μL	70	23	0.63	0.365	Bevel	5BR-7BV	35058	803
5 μL	115	23	0.63	0.365	Cone	5BR-11.5	35059	804
5 μL	70	23	0.63	0.365	Nozzle	5BR-7N	35060	805

Volume	Needle Length (mm)	Needle Gauge	OD (mm)	ID (mm)	Tip Style	Syringe Code	Replacement Needle and Plunger P/N	1/pk Syringe P/N
8.0 mm Outer Diameter (OD) Barrel
0.5 μL	70	23	0.63	0.1	Cone	0.5BR-7	33057	310
0.5 μL	70	23	0.63	0.1	Bevel	0.5BR-7BV	33060	311
1 μL	50	23	0.63	0.155	Cone	1BR-5	34055	500
1 μL	50	23	0.63	0.155	Bevel	1BR-5BV	34056	501
1 μL	70	23	0.63	0.155	Cone	1BR-7	34057	505
1 μL	70	23	0.63	0.155	Bevel	1BR-7BV	34060	506
5 μL	50	23	0.63	0.365	Cone	5BR-5	35055	800
5 μL	50	23	0.63	0.365	Bevel	5BR-5BV	35056	801
5 μL	70	23	0.63	0.365	Cone	5BR-7	35057	802
5 μL	70	23	0.63	0.365	Bevel	5BR-7BV	35058	803
5 μL	115	23	0.63	0.365	Cone	5BR-11.5	35059	804
5 μL	70	23	0.63	0.365	Nozzle	5BR-7N	35060	805

Syringes Fitted with Repeating Adaptor

Volume	Needle Length (mm)	Needle Gauge	OD (mm)	ID (mm)	Tip Style	Syringe Code	Replacement Needle and Plunger P/N	1/pk Syringe P/N
6.5 mm Outer Diameter (OD) Barrel
0.5 μL	50	23	0.63	0.155	Cone	0.5BNR-5-RAX	33010	350
0.5 μL	50	26	0.47	0.155	Cone	0.5BNR-5/0.47-RAX	33012	353
8.0 mm Outer Diameter (OD) Barrel
0.5 μL	70	23	0.63	0.1	Cone	0.5BR-7-RAX	33057	355
1 μL	50	23	0.63	0.155	Cone	1BR-5-RAX	34055	550
1 μL	70	23	0.63	0.155	Cone	1BR-7-RAX	34057	553

Volume	Needle Length (mm)	Needle Gauge	OD (mm)	ID (mm)	Tip Style	Syringe Code	Replacement Needle and Plunger P/N	1/pk Syringe P/N
6.5 mm Outer Diameter (OD) Barrel
0.5 μL	50	23	0.63	0.155	Cone	0.5BNR-5-RAX	33010	350
0.5 μL	50	26	0.47	0.155	Cone	0.5BNR-5/0.47-RAX	33012	353
8.0 mm Outer Diameter (OD) Barrel
0.5 μL	70	23	0.63	0.1	Cone	0.5BR-7-RAX	33057	355
1 μL	50	23	0.63	0.155	Cone	1BR-5-RAX	34055	550
1 μL	70	23	0.63	0.155	Cone	1BR-7-RAX	34057	553
