For Agilent

Easy to install | Leak free | Stable

Instrument	Column ID	Ferrule ID	Pack Size	Part Number
15% Graphite/85% Vespel ferrules
Injectors and detectors at atmospheric pressure e.g. FID	0.10-0.25 mm	0.4 mm	10	73109
	0.32 mm	0.5 mm	10	73111
	0.53 mm	0.8 mm	10	73113
	for 1/8" OD packed columns	1/8"	10	72669
	for 1/4" OD packed columns	1/4"	10	72667
GCMS interface connection	0.10-0.25 mm	0.4 mm	10	72663
	0.32 mm	0.5 mm	10	72654
	0.53 mm	0.8 mm	10	72655
100% Graphite ferrules
Injectors and detectors at atmospheric pressure e.g. FID (not for GCMS)	0.10-0.32 mm	0.5 mm	10	72635
	0.45-0.53 mm	0.8 mm	10	72636
	for 1/8" OD packed columns	1/8"	10	72602
	for 1/4" OD packed columns	1/4"	10	72601
SilTite metal ferrule starter kits
GCMS interface connection (starter kit)	0.10-0.25 mm	0.4 mm	10*	73200
	0.32 mm	0.5 mm	10*	73201
	0.53 mm	0.8 mm	10*	73202
Split/splitless injectors (starter kit))	0.10-0.25 mm	0.4 mm	10*	73270
	0.32 mm	0.5 mm	10*	73271
	0.53 mm	0.8 mm	10*	73272
	1/32"	0.81 mm	10*	73273
* - Includes ten ferrules, two SilTite nuts. #Includes ten ferrules, two SilTite nuts and two SilTite inlet base seals.
Replacement SilTite metal ferrules
All connections	0.10-0.25 mm	0.4 mm	10*	73220
	0.32 mm	0.5 mm	10*	73221
	0.53 mm	0.8 mm	10*	73222
	1/32"	0.81 mm	10*	73219
Replacement SilTite nuts
GCMS interface connection	- - -	- - -	5	73224
Split/splitless injector	- - -	- - -	5	73226
Replacement SilTite base seals
Split/splitless injector	- - -	- - -	2	73400
	- - -	- - -	10	73401

Description	Column ID	Ferrule ID	Pack Size	Part Number
For Agilent 7890, 6890, 6850, 5890 and 4890
SilTite FingerTite INJ/FID starter kit	0.10-0.25 mm	0.4 mm	*	73610

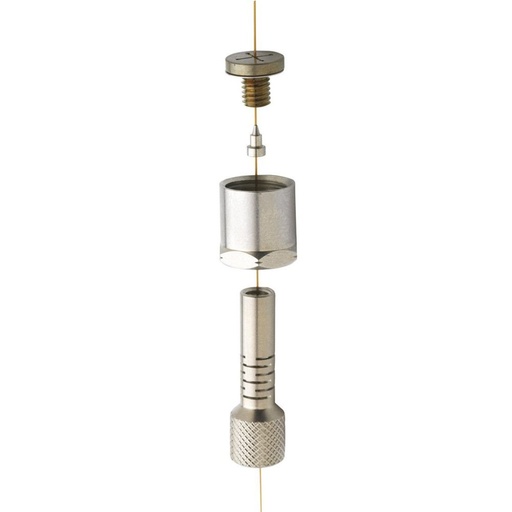

SilTite FingerTite capillary/FID starter kit	0.10-0.25 mm	0.4 mm	*	73611
SilTite FingerTite INJ/MS starter kit	0.10-0.25 mm	0.4 mm	*	73612
SilTite FingerTite INJ/FID starter kit	0.53 mm	0.7 mm	*	7361053
SilTite FingerTite injector starter kit	0.53 mm	0.7 mm	*	7361054
Replacement Parts
SilTite FingerTite ferrule 0.4 mm	0.10-0.25 mm	0.4 mm	10	73630
SilTite FingerTite ferrule 0.5 mm	0.32 mm	0.5 mm	10	73631
SilTite FingerTite ferrule 0.7 mm	0.53 mm	0.7 mm	10	73632
SilTite FingerTite blanking ferrule	- - -	- - -	2	73633
SilTite FingerTite female nut	- - -	- - -	5	73636
SilTite FingerTite INJ base seal	0.10-0.25 mm	- - -	2	73640
SilTite FingerTite capillary adaptor	- - -	- - -	1	736101
SilTite FingerTite MS adaptor	- - -	- - -	1	736102
SilTite FingerTite FID adaptor	- - -	- - -	1	736103
SilTite FingerTite injector adaptor (includes 2 base seals)	0.10-0.25 mm	- - -	1	736104
* - Each starter kit includes all the parts necessary to convert one GC system (one injector and one detector) to the SilTite FingerTite system. In addition there are five SilTite FingerTite nuts, ten SilTite FingerTite ferrules, and a ferrule install tool which allows you to seat the ferrule in the correct position on the capillary column.
